Model: NWC2017120L2T

About

Body: Fully Stainless Steel
Cooling Capacity : 45 LPH
Storage Capacity : 120 Ltr.
Size : 30"LX 30"BX 90"H
Net Weight : 100 Kg Appx.
Temperature Range : 23 o C to 27 o C at Avg. 60% RH


CONFIGURATION :
1) 10 " X 5 μ Poly Propylene Filter Cartridge with Bowl
2) 25 Watt Solar PV Module
3) 184 Watt 230V 50 Hz 134a Compressor and accessories
2) 12 V DC Adepter

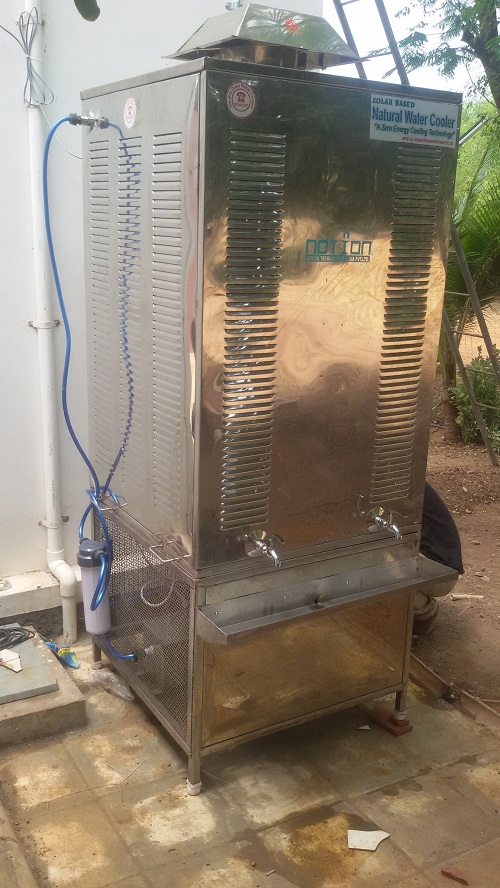

1)Natural Water Cooler gives best performance in ot and dry weather condition.
2)Cooling of water depends upon the Relatice Humidity (RH) and Ambient Temprature.
3)Max Cooling of 21/22 Degree Celsius can be achieved when the Atmospheric temprature remains around 40/42 Degree celsius and at 50%.
4)The cooling temprature may get down till 26.5 Degree Celsius , when the out side temprature reaces around 35 Degree celsius & RH at 75%
5)For better performance & efficiency , The Natural Water Cooler is normally installed at a place where the easy air circulation is possible. I.E. Under the
Tree , in opern space with rood, Balcony of a Building etc.

1) It is a Zero Energy Devise and requires no External supply of Electricity.
2) No moving part inside So No major maintenance Cost.
3) Since Pure copper is being used, it is hygienic for health due to its inherent property.
4) it carries great self life with compare to Electrically operated Water Coolers.

Model: NWC2016120L2T

Notion Technocrats India Pvt Ltd. , formally "Nature Technocrats" was found in year Nov 2012 , After the endless efforts of "Shree Arvindbhai R Patel".

About : NWC2016120L2T

Body: Fully Stainless Steel
Cooling Capacity : 45 LPH
Storage Capacity : 120 Ltr.
Size : 30"LX 30"BX 90"H
Net Weight : 100 Kg Appx.
Temperature Range : 23 o C to 27 o C at Avg. 60% RH


CONFIGURATION :
1) 10 " X 5 μ Poly Propylene Filter Cartridge with Bowl
2) 25 Watt Solar PV Module
3) 184 Watt 230V 50 Hz 134a Compressor and accessories
2) 12 V DC Adepter

1)Natural Water Cooler gives best performance in ot and dry weather condition.
2)Cooling of water depends upon the Relatice Humidity (RH) and Ambient Temprature.
3)Max Cooling of 21/22 Degree Celsius can be achieved when the Atmospheric temprature remains around 40/42 Degree celsius and at 50%.
4)The cooling temprature may get down till 26.5 Degree Celsius , when the out side temprature reaces around 35 Degree celsius & RH at 75%
5)For better performance & efficiency , The Natural Water Cooler is normally installed at a place where the easy air circulation is possible. I.E. Under the
Tree , in opern space with rood, Balcony of a Building etc.

1) It is a Zero Energy Devise and requires no External supply of Electricity.
2) No moving part inside So No major maintenance Cost.
3) Since Pure copper is being used, it is hygienic for health due to its inherent property.
4) it carries great self life with compare to Electrically operated Water Coolers.

Model: NWC2015120L2T

About: NWC2015120L2T

Body: Fully Stainless Steel
Cooling Capacity : 45 LPH
Storage Capacity : 120 Ltr.
Size : 30"LX 30"BX 90"H
Net Weight : 100 Kg Appx.
Temperature Range : 23 o C to 27 o C at Avg. 60% RH


CONFIGURATION :
1) 10 " X 5 μ Poly Propylene Filter Cartridge with Bowl
2) 25 Watt Solar PV Module

1)Natural Water Cooler gives best performance in ot and dry weather condition.
2)Cooling of water depends upon the Relatice Humidity (RH) and Ambient Temprature.
3)Max Cooling of 21/22 Degree Celsius can be achieved when the Atmospheric temprature remains around 40/42 Degree celsius and at 50%.
4)The cooling temprature may get down till 26.5 Degree Celsius , when the out side temprature reaces around 35 Degree celsius & RH at 75%
5)For better performance & efficiency , The Natural Water Cooler is normally installed at a place where the easy air circulation is possible. I.E. Under the
Tree , in opern space with rood, Balcony of a Building etc.

1) It is a Zero Energy Devise and requires no External supply of Electricity.
2) No moving part inside So No major maintenance Cost.
3) Since Pure copper is being used, it is hygienic for health due to its inherent property.
4) it carries great self life with compare to Electrically operated Water Coolers.
